The Residences, Edgabaston
The Project
L. Reynolds (Building Systems) Ltd delivered the £1,002000 SFS works at The Residences Edgbaston directly adjacent to the famous cricket ground, providing SFS infill framing solutions and stand alone mezzanine floor to reception/residents lounges , sheathing board, EPDM and Insulation.
The EOS SFS included infill solutions and Stand alone walls with mezz flooring for the main Reception/residents lounge area.

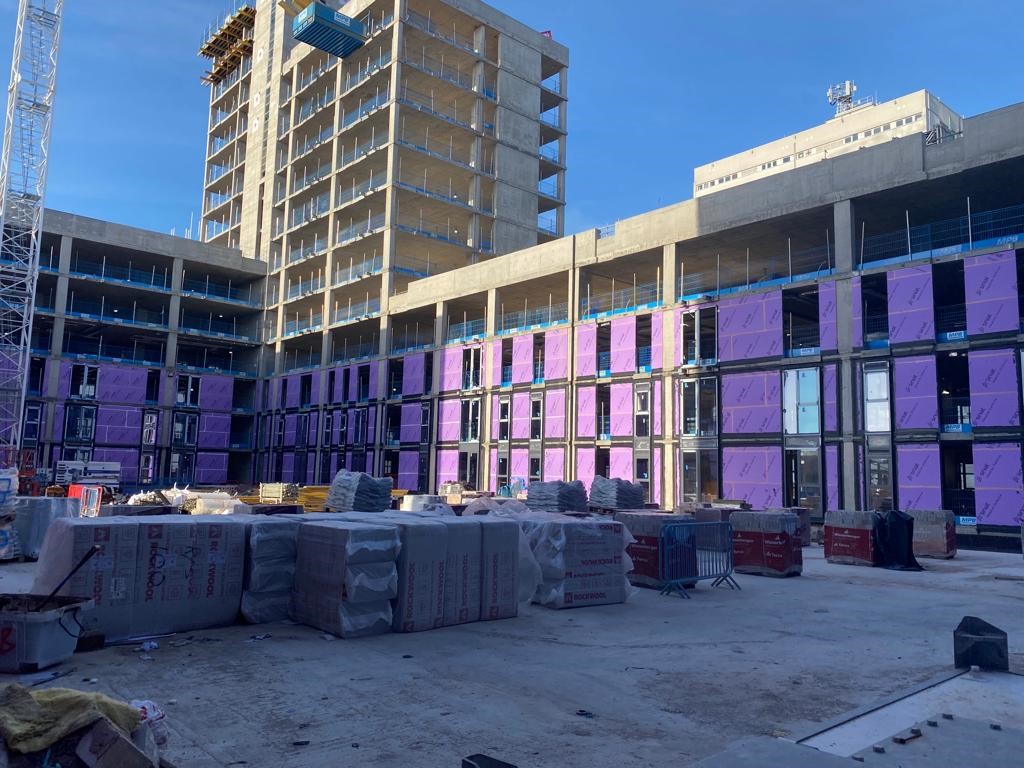

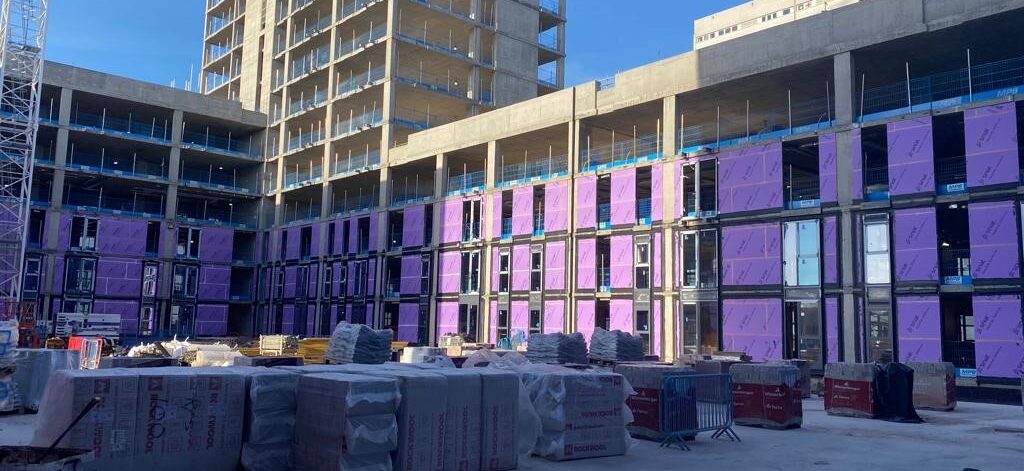

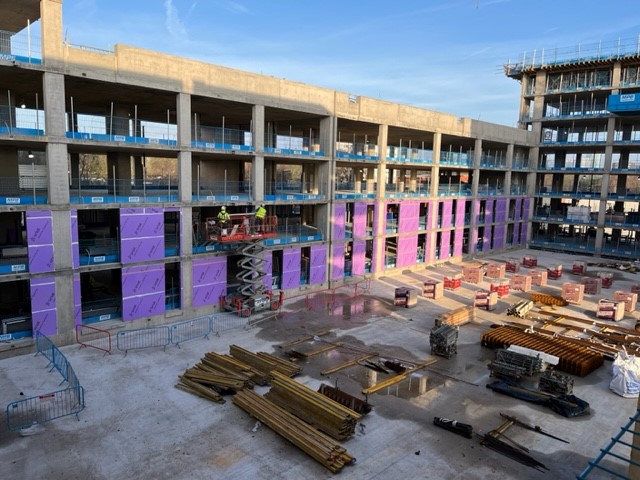

The project is a 18 storey 60m high Building accessed using traditional scaffold eternally, although early elevations had to be accessed using MEWP’s to ensure programme dates were achieved ahead of scaffold installation.
L. Reynolds (Building Systems) Ltd completed the installation using EOS steel frame system, together with Siniat Weather Defence board to ensure through wall compliance and sealed with Obex EPDM solutions
Scope of Works

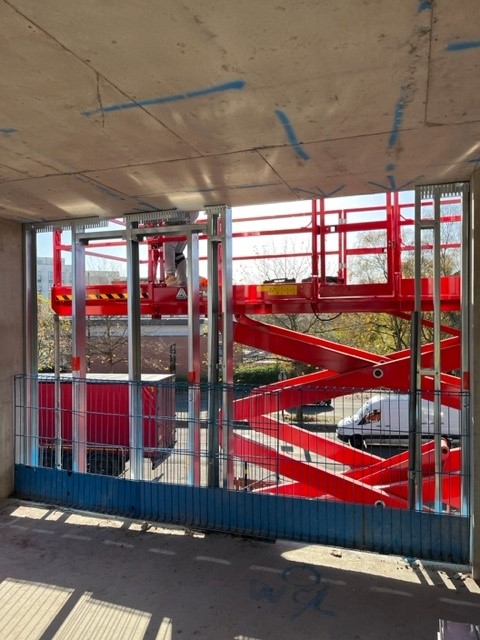

Install Infill sfs
Board external using Siniat Weather defense boards with intumescent FR sealant to provide airtight fire rated facade
seal junction between sfs and concrete frame using Obex EPDM to ensure airtight facade
Insulate sfs studs with Rockwool RWA45 to help provide a thermally efficient structure
