Exton Vineyard, Hampshire

Click to watch video

Click to watch video

Click to watch video

1/7

The Project

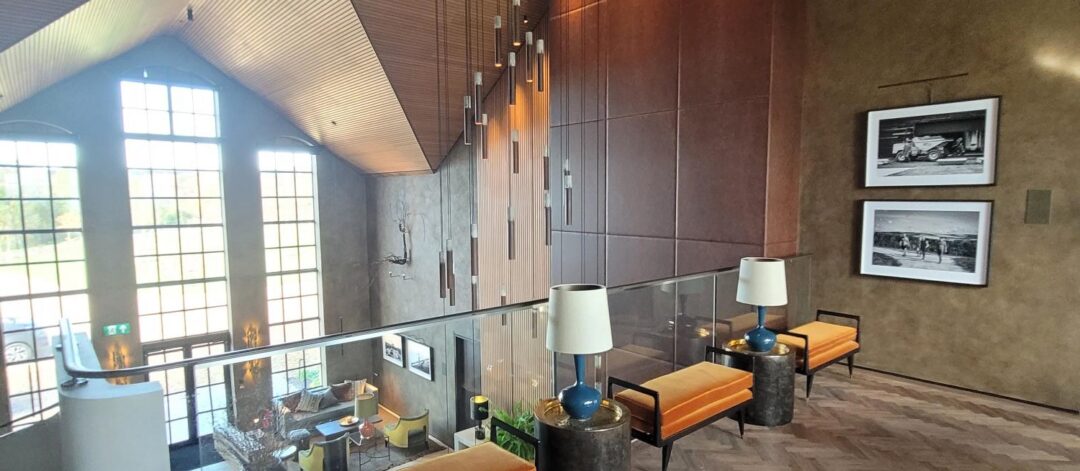

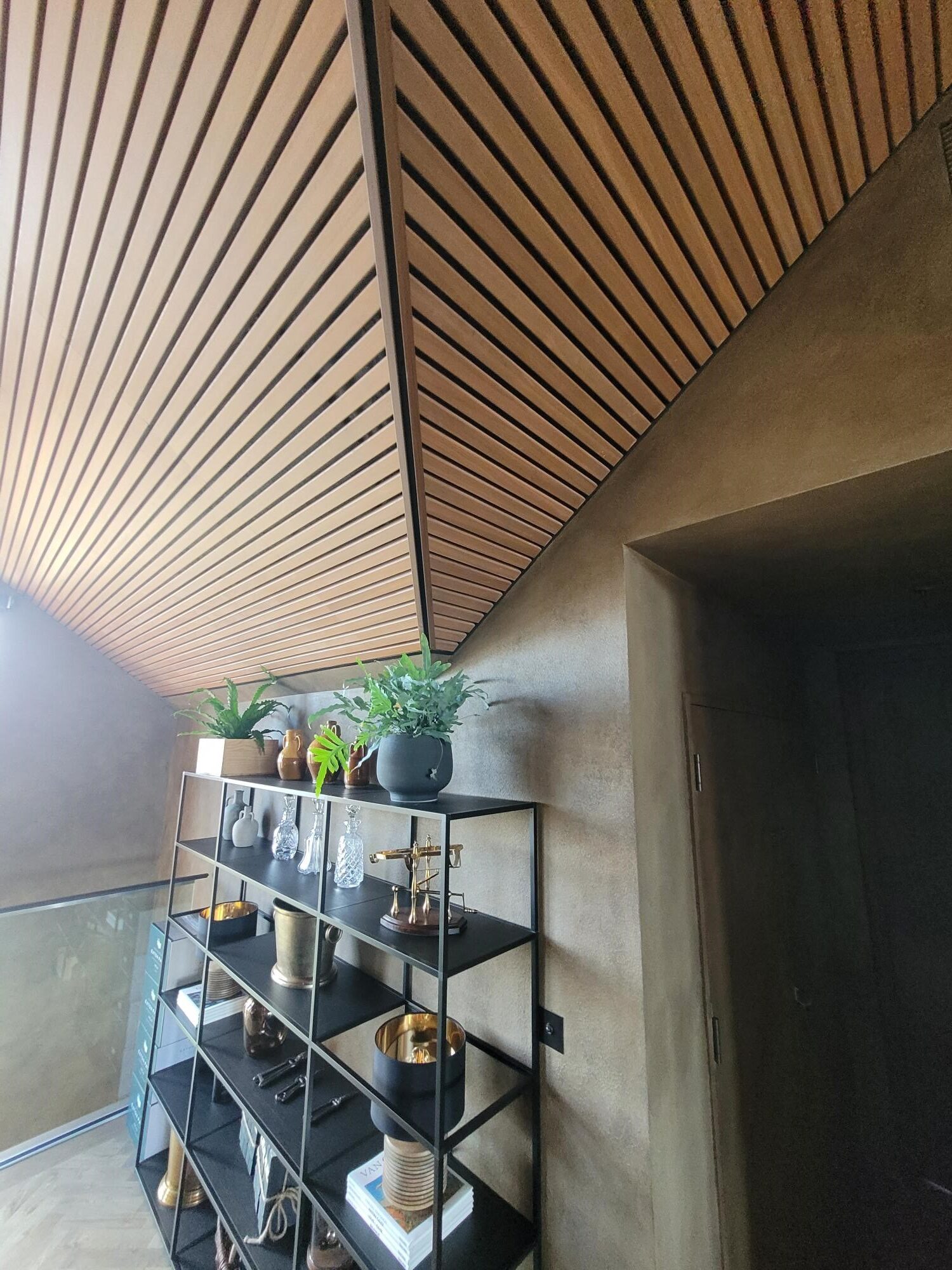

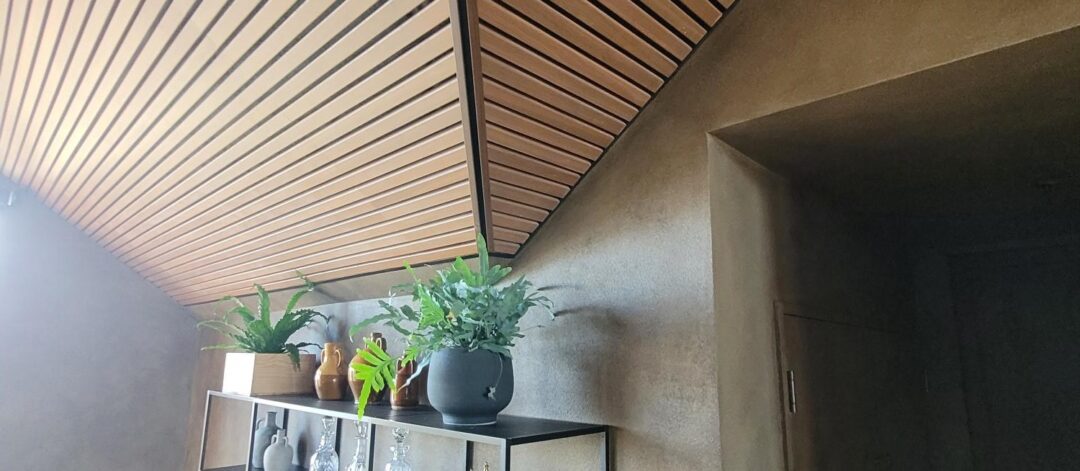

Design and installation of MF ceiling system with Gustafs Ribs fitted too, installed following line of roof construction and adjusting as necessary so ceilings met at same angle. The angle was critical to make sure the ribs lined up. Acoustic slab was fitted behind MF system, then an acoustic fleece, before fixing approximately 8000 individual clips, all lined up with template, ready to take the ribs. Splice plate fitted between rib joints. Finally a bespoke angled top hat trim was designed where ribs met at point.

Scope of Works

Installation of MF Ceilings, curved upstand, blind boxes, sloping

Installation of Gustafs linear rib ceiling

Dry lining to walls

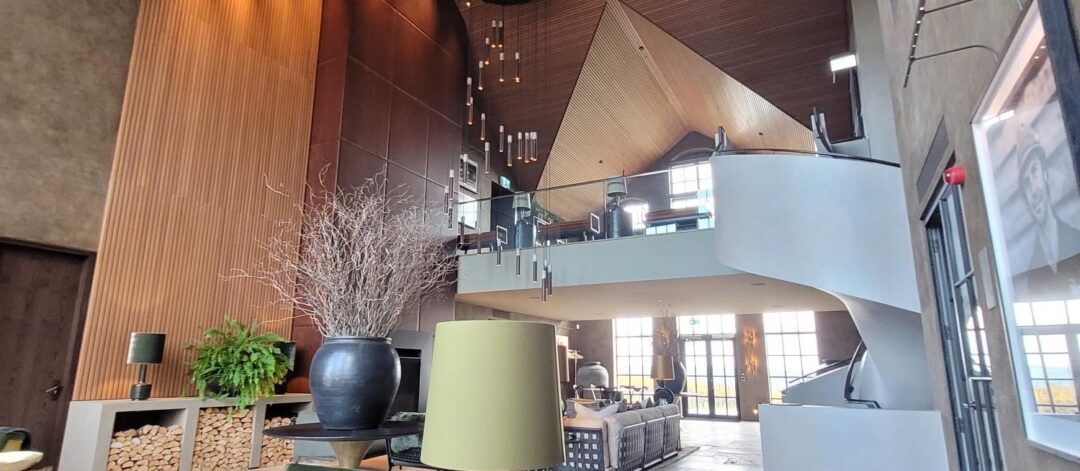

Curved staircase, built using timber stud work, fixed of steel uprights by others, clad contour board and rib lath as required.

www.newforestceilings.co.uk



Project Type

  • Ceilings

Location

  • Hampshire

Sector

  • Commercial

Supplier

  • LSA

Architect

  • Luke Rose Architect
